Overview
- 360° unobstructed lighting
- Interchangeable 180° or 40° light spread optics per module
- Available in single color or dual color
- 25 flash patterns for single color
- 68 flash patterns for dual color
- + Directional Patterns

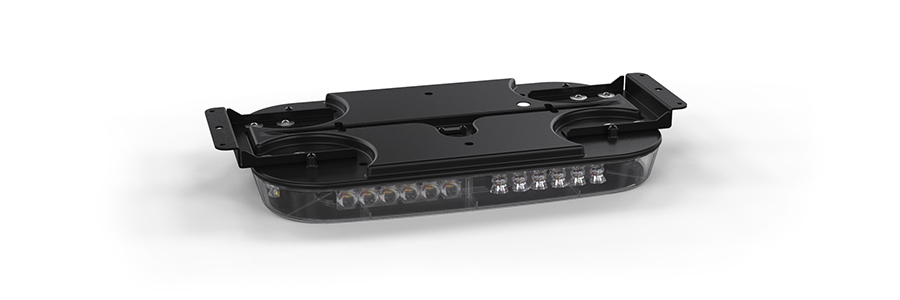

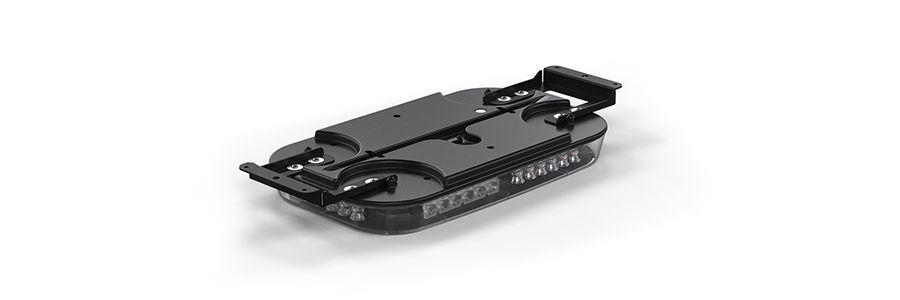

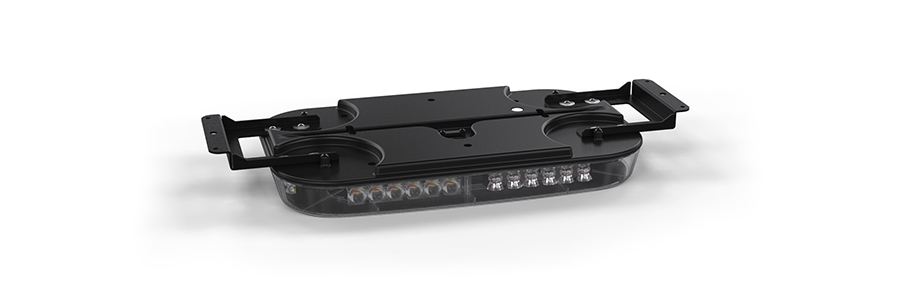

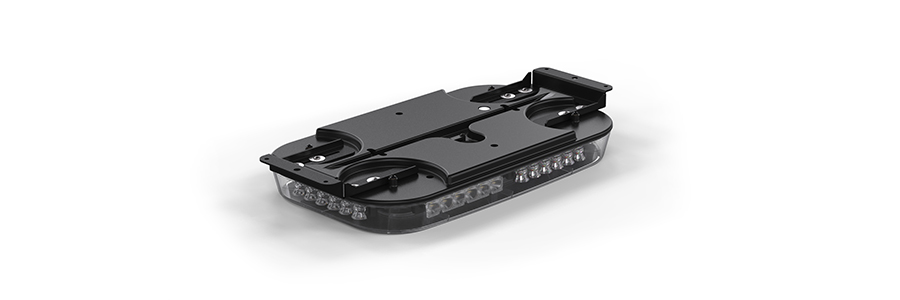

- 2 mounting options: Magnetic or Permanent
- 2 programmable modes for dual color
- Includes anti-scratch, protective rubber magnet covers
- Cigarette plug with on/off and momentary switch or 10ft hardwire option
- Flood pattern capable for dual color
- Rugged weather-resistant enclosure
- Available Colors: R, B, A, W, G, RW, BW, AW, AR, AB, RB
Specifications
- Warranty 5 Years
- Certifications SAE J595, CT13, SAE J1119
- Input voltage 12VDC
- Current Draw: 5A
- Single Color: 36 high power 4 Watt Cree LED’s
- Dual Color: 72 high power 4 Watt Cree LED’s
- Cable Harness length: 10 feet
- Dimensions 2.33" H x 13.94" L x 8.06" W
- Made in the USA
The Fusion Mini Light Bar is an industry leader with its dual mode capability, functioning as both a warning light and scene light. With 360° degree lighting and 25 to 75 flash patterns, the mini LED light bar offers extreme warning light power. There are two mounting options available for the Fusion Mini Light Bar; an adjustable permanent mount and an adjustable magnetic mount. Each magnet is rated at 60 pounds with scratch resistant covers to protect the roof of the emergency vehicle. The Fusion series offers emergency lights that take the best of both the 180 and 40 degree optics.
